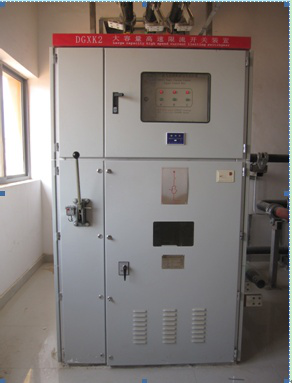

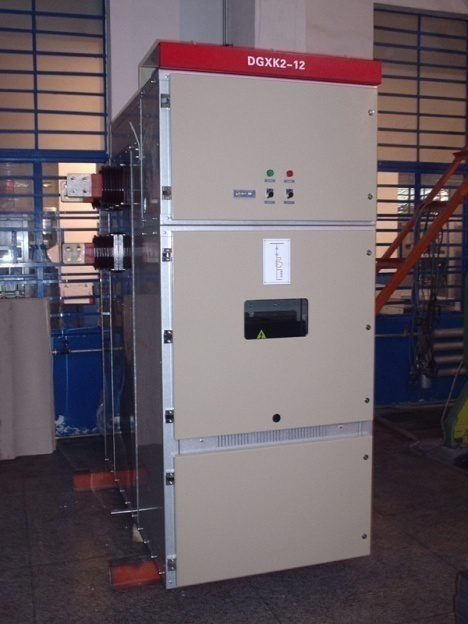

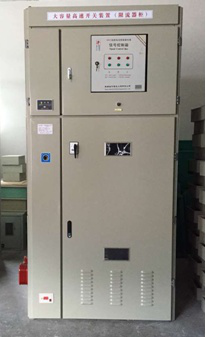

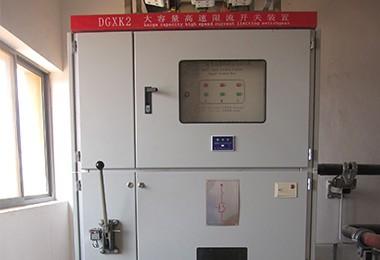

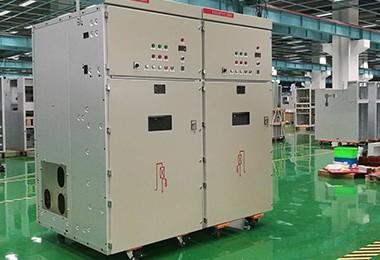

What is DGXK2? DGXK2=DDX1+ Switch Cabinet with Different Configurations

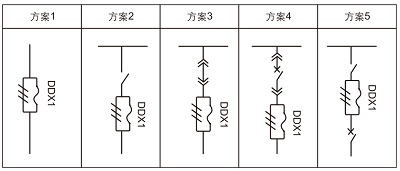

The main electrical wiring scheme is as follows
There are three following configurations:
（1）DDX1 separate cabinet
（2）DDX1+ fixed or handcart disconnector
（3）DDX1+ Fixed or Handcart Vacuum Circuit Breaker
DGXK2 cabinet type can refer to mature switch cabinets such as GG1A, XGN, KYN28, KYN18, etc. It can also be non-standard designed according to specific projects and users’ requirements.
Rated electrical parameters of DGXK2 series of products：
| number | Parameter Name | Unit | Technical Parameter | |
|---|---|---|---|---|
| 1 | Rated voltage | kV | 12-40.5 | |
2 | Rated current | A | 630-6300 | |
3 | Rated pre-expected short-circuit breaking current | kA | 50-200 | |
4 | Current limit coefficient = cut-off current / the peak Value of Pre-expected Fault Current | % | 15~50 | |
5 | Insulation level | Power frequency withstand voltage | kV/1min | 42-95 |
Lightning impulse withstand voltage | kV | 75-185 | ||

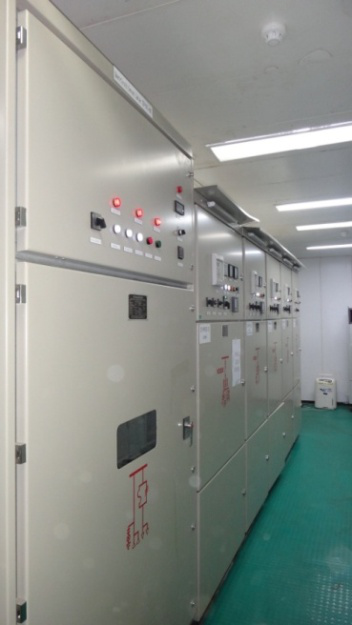

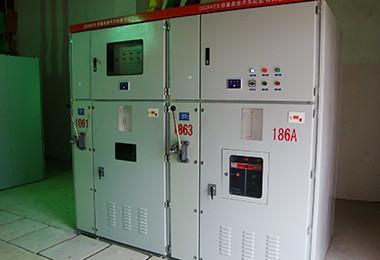

Product Usage
◆ Bypass current limiting reactor (energy saving, consumption reduction, reactive power elimination and power supply quality improvement)
◆ Parallel operation of sectionalized buses in large-capacity distribution system (optimizing load distribution and reducing network impedance)
◆Short circuit protection of generator outlet or transformer low voltage side
