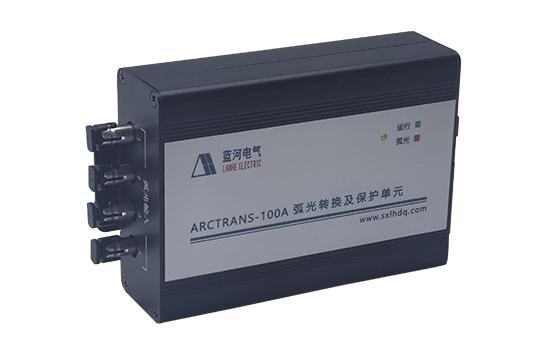

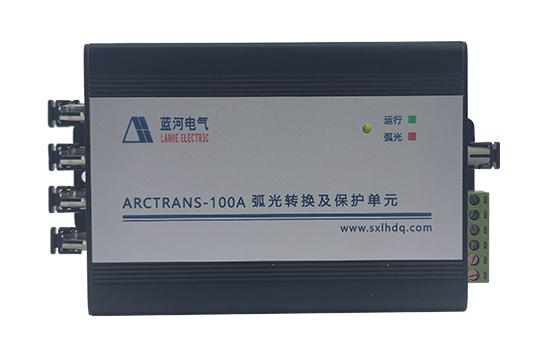

ARCTRANS-100A arc conversion and protection

ARCTRANS-100A uses the pre-circuit to convert and amplify the signals of four arc sensors, and the signal conversion adopts the special ARCEYE-100C dual-sensor integrated photoelectric device, which can linearly convert the incident signal from 0 to 0~50kLux. The threshold judging circuit includes threshold setting and logic conversion. If any arc signal exceeds the threshold, an action signal will be output.


1. Technical characteristics

● Adopts pure analog circuits, featuring fast response and excellent anti-interference performance. The arc light identification and response time is less than 2ms.

● Equipped with a wide-angle point-type passive arc light probe: visible light/ultraviolet light, with a photosensitive angle of 360°×240°.

● Full fiber opticization of arc light signal input and output, ensuring strong anti-interference capability.

● Abundant protection outputs: conventional relay action signals, fast optical pulse action signals, and LED color-change indication.

● One-key reset design for arc protection signals.

2. Basic principles

ARCTRANS-100A uses the pre-circuit to convert and amplify the signals of four arc sensors, and the signal conversion adopts the special ARCEYE-100C dual-sensor integrated photoelectric device, which can linearly convert the incident signal from 0 to 0~50kLux. The threshold judging circuit includes threshold setting and logic conversion. If any arc signal exceeds the threshold, an action signal will be output.

3.Main Technical Parameters

Rated Voltage

220VAC/220VDC±20%

Module power   consumption

< 2 VA

Power Supply Sag

50%/1s，0%/100ms

External Sensor Type

Passive, point-type arc light sensor, visible light or   ultraviolet light

Number of external sensors available

4

The illumination detection range of external sensors.

200-50kLux

Recommendations   for the Length of POF Fiber Optic Jumpers for External Sensors

≤5m

Arc   threshold setting method and error

0.2V-2.5V，Continuous adjustment

The error   range of arc protection setting value.

< ± 20%

Response time

< 2ms

LED   indicator light

Green   --- Operation; Red --- Arc light, Locked.

Relay contacts

Conventional   relay, 1 normally open + 1 normally closed, time-limited/locked.

Arc fault   action signal remote transmission

For SOF   optical fiber external transmission, the recommended length is ≤ 200 meters.

Characteristics   of arc fault action signals

Transmit   while moving, no locking.
