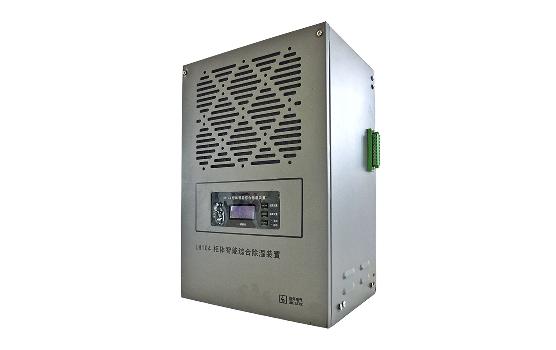

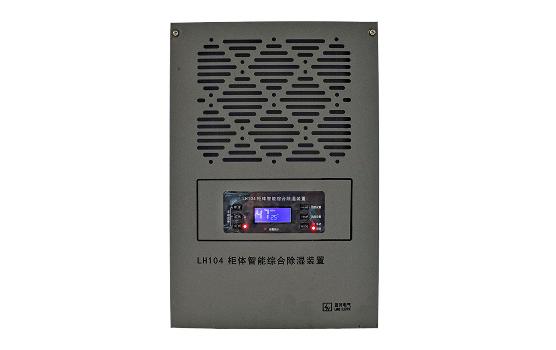

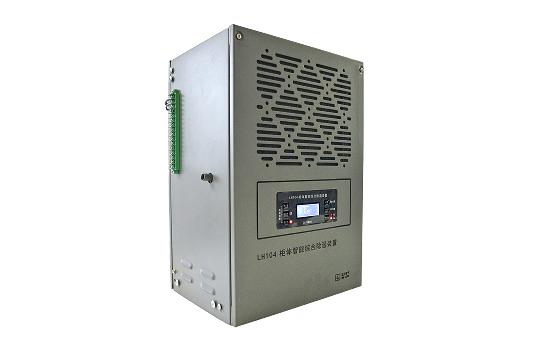

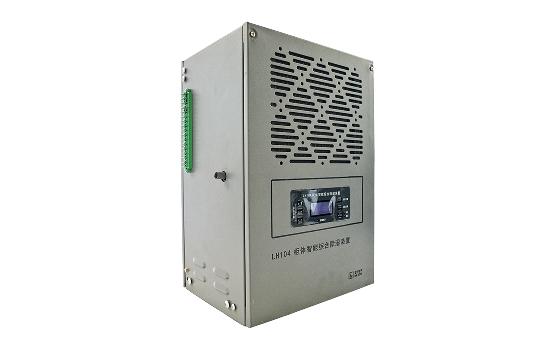

LH104 cabinet intelligent dehumidifier

LH104 is a new-type intelligent dehumidification device specially developed by our company to address the condensation phenomenon in electrical cabinets. This dehumidification device innovatively employs a micro high-reliability compressor to reduce the absolute humidity in the cabinet space, causing the humid air inside the cabinet to condense into water and discharge directly outside the cabinet. It can also improve the air environment inside the cabinet by connecting various auxiliary devices such as external axial fans, heaters, and backup equipment (e.g., hot air blowers). The device adopts a scientific dehumidification control strategy, which can quickly and effectively reduce the air humidity inside the electrical cabinet, inhibit the generation of condensation, achieve an ideal anti-condensation effect inside the cabinet, and eliminate the safety threats to the insulation of power distribution equipment caused by long-term condensation.


Technical Parameters：

Parameter   Name

Technical   Specifications

Rated   voltage and frequency

220V/50Hz

Dehumidification capacity

6.5L/24h

Maximum   power

160W

Internal   fan air volume

100m3/h

Special micro compressor

Refrigerant   / Charge amount

R134/80g

Lower   limit of operating temperature

It can be set at 5~10℃±1, with a default of 7℃

Upper   limit of operating temperature

45℃

Pressure   protection

High   voltage and low voltage

Dehumidifier humidity activation value

It can be set at 30%~80%±3RH%, with a default of 60%.

External   control auxiliary equipment

External   control fan, dry contact

2   channels, automatic control. 1 channel  is standard configuration, and 1  channel is optional configuration.

External control heating, dry contact

1   channel, automatic control, optional configuration.

Alarm   signal

Equipment   abnormality, dry contact

1   normally open and 1 normally closed

Power   supply monitoring, dry contact

1 normally closed

Dry   contact capacity

6A/250VAC or 30VDC

The   measurement range of the temperature and humidity sensor

-40℃~80℃±1/10%RH~100%RH±3%RH

Installation method

Floor-standing, wall-mounted

Shell protection level

IP2X

Shell size

398mm*270mm*210mm

Device characteristics:

The core device of dehumidification: miniature compressor with high reliability;

An external high-precision temperature and humidity sensor is used to monitor the environmental conditions inside the cabinet in real time;

LH104 uses industrial-grade components and control units, and has excellent EMC performance.
